          Description

          1. Product Features of LED Panel Light 80W.

          • Aluminum Frame: led panel light uses 6063 aluminum, the surface temperature spray white handle.

          • Lightman led panel light uses a high quality PS diffuser, the light is evenly scattered, and the light is bright and soft, making it feel comfortable.

          • We use Mitsubishi light guide plate with light transmittance up to 90%.

          • Adopts high quality micro prismatic diffuser with UGR<19.

          • EVA foam protects led panel light guide plate from reshaping.

          • Constant current driver with a power factor more than 0.95.

          • Our led panel lights have different sizes for options. Such as, 600x600, 600x300, 600x1200, 300x300,300x1200 and 620x620. And we also can customized sizes according to customers requirements.

          • LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and EMC certified.

          2. Product Specification:

          Model No

          PL-6060-60W

          PL-6060-72W

          PL-6060-80W

          Power Consumption

          60 W

          72 W

          80 W

          Luminous Flux (Lm)

          		 5400-6000 Lm

            6480-7200 Lm

           7200-8000Lm

          LED Qty(pcs)

          300 pcs

           408 pcs

          408 pcs

          LED Type

          SMD 2835

          Color Temperature (K)

          2700 - 6500K

          Color

          Warm/Natural/Cool White

          Dimension

          595x595x10mm

          Beam Angle (degree)

          >120°
          Light Efficiency (lm/w)

            >90lm/w

          CRI

           >85

          Power Factor

           >0.95

          Input Voltage

          AC 85V - 265V/100~240Vac

          Frequency Range (Hz)

          50 - 60Hz

          Working Environment

           Indoor

          Material of Body

          Aluminum alloy frame and PS diffuser

          IP Rating

          IP20

          Operating Temperature

          -20°~65°

          Dimmable

          Optional

          Life span

          50,000hours

          Warranty

          3Years or 5 Years



          3. LED Panel Light Pictures:

          1. led panel light-Product Detail

          2. led panel lamp-Product Detail

          3. led panel 60x60-Product Detail

          4. led panel 600x600-Product Detail

          5. led 600x600-Product Detail

          6. led 60x60-Product Detail

          7. led 595x595-Product Detail

          4. LED Panel Light Application:

          Our led panel light is widely used for commercial lighting, office lighting, hospital lighting, clean room lighting etc. It is popular to be installed in office, school, supermarket, hospital, factory and institution building etc.

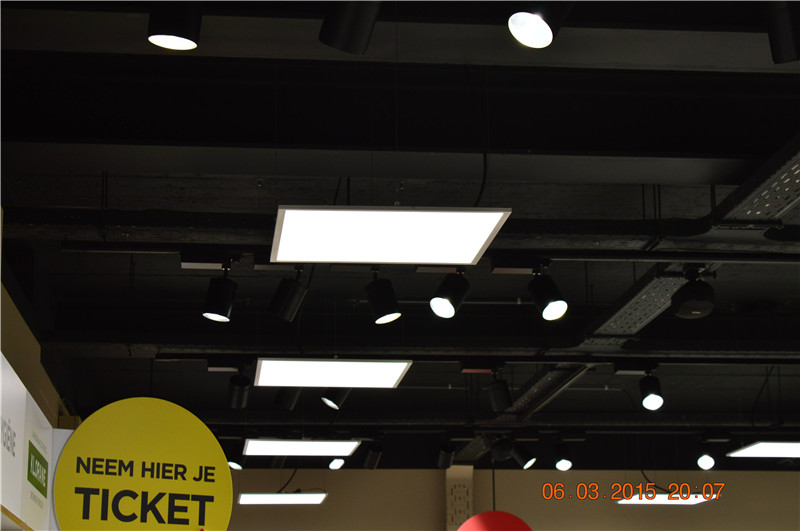

          Recessed Installation Project:

          8. recessed led panel installation example



          Surface Mounted Project:

          9. surface mounted installation example



          Suspended Installation Project:

          10. suspended led panel installation example



          Wall Mounted Installation Project:

          11. wall mounted led panel installation example
